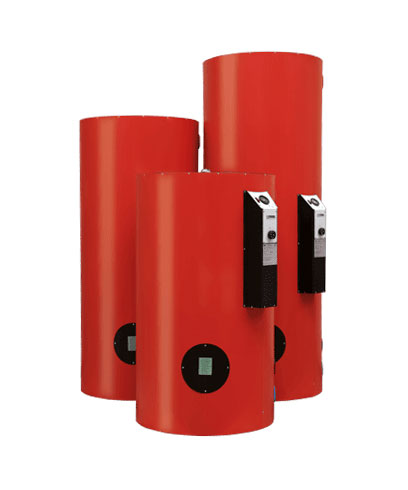

ATI-CC Enamel Lined Single Coil with Anode

The ATI-CC range of calorifiers is a single coil indirect style water storage tank. Hot water production takes places by the exchange of heat from the glass lined heating coil into the primary water volume. The heat source for the coil is from an external energy source – such as a Strebel S-CB range boiler.

Available in three sizes offering DHW storage of 295, 390 and 488 litres the ATI-CC features an internal surface lining of a vitreous enamel coating that penetrates the metal preventing oxidation and chemical corrosion of the unit.

This coating is carried out during unit manufacturing at a temperature of 860ºC thus providing an extremely resilient barrier to degradation. The unit is fitted with a sacrificial anode as standard with a thermometer, pressure and temperature relief vale and is fully factory wired.

Offering up to 1050 litres per hour at continuous output of 60°C with a user-friendly footprint the ATI-CC is an easy-to-install, user-friendly and maintenance-free solution for commercial applications where on-demand hot water is required. The units come as standard in
vertical format.
